$55.00
A LED Transformer is needed to plug the LED lights into and will need to be purchased separately and should be available at most Hardware Stores. This link will show you what we recommend.
Description

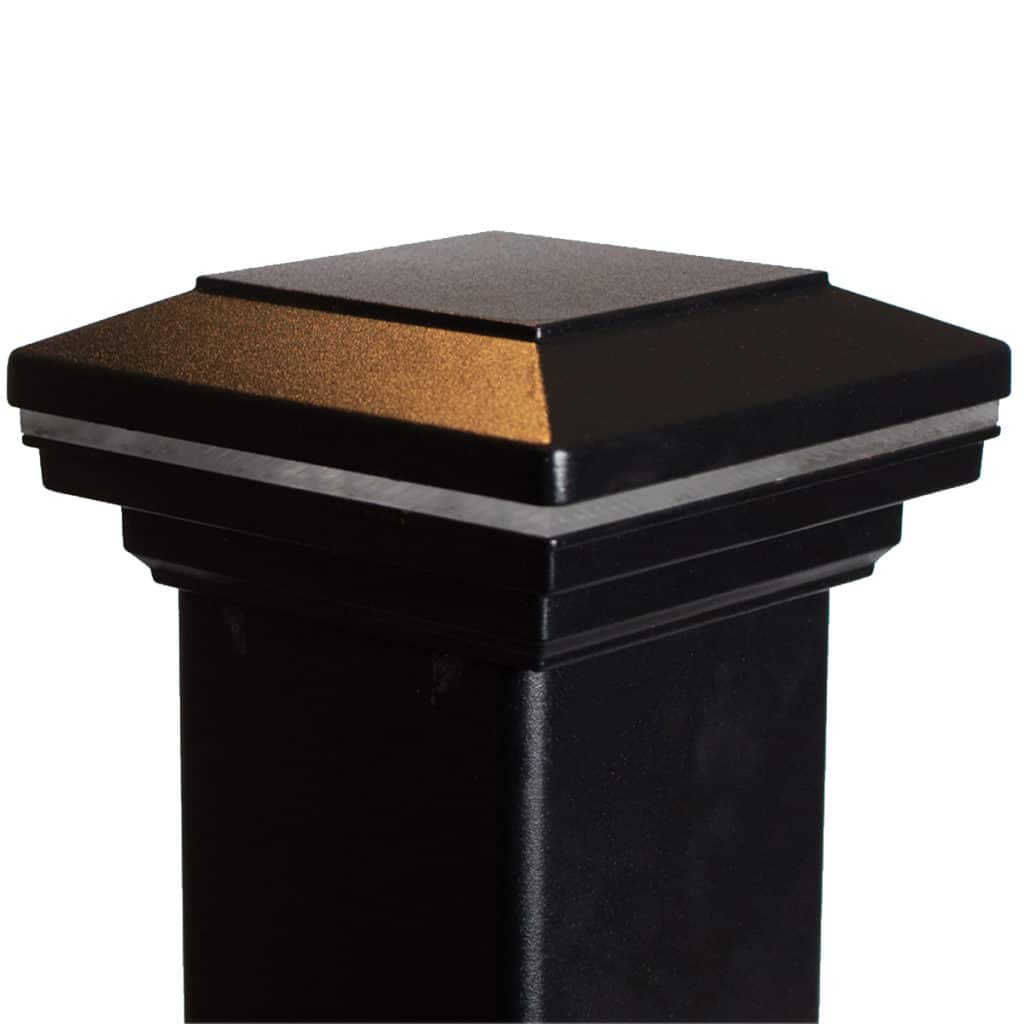

PREFERRED Modular Flat LED Post Cap will finish off the 3.5″ Post, and bring light to the night. They come in the 3 same colors as the Post.
We offer a COOL (bright white) or a WARM (smooth gold) choice of LED light.
We don’t assemble our LED lights until they are ordered, so they may be delayed a day. For large quantities, it may take longer.
Specifications
| FINISH | Black Textured, White Textured, Bronze Texture. |
| MATERIAL TYPE | Aluminum Casting |
| Height | 2 ¼” |
| Dimensions | OUTSIDE: 5 ¼” X 5 ¼”
INSIDE: 3.5” X 3.5” |
| PRESSURE FIT CAPS | Caps with 2 pinch points on each side, secured by applying even force onto the post. |
LED Light – Cool/White
LSMCC-x4X3-LP series Sign Modules are constant current driven and use four 3-chip High Power 5050SMD LEDs with 120° viewing angle – SELECT LED COLOR TO MATCH SIGN PLASTIC COLOR
Beam Angle
120 degree
Constant Current
Yes
Current Draw Per Module
0.07A (70mA)
Dim Control
Pulse Width Modulation (PWM)
Dimensions
Dimmable
Yes
Environmental Rating
Weatherproof IP65
Input Connection Type
Pigtail
LED Lifetime
50000 Hours
LED Quantity
4 LEDs
LED Type
5050 SMD
LEDs per Segment
4
Module Length
1.52in (38.5mm)
Operating Temperature
-25~+60 °C (-13~+140 °F)
Standards And Certifications
ISA Approved, RoHS Compliant, UL Recognized
UL File Number
E357849
Volts
11~14 VDC
Wattage Per Module
0.8 Watts
Wire Length Between Modules
3.33in (84.6mm)
LED Light – Warm/Yellow
LSMCC-x4X3-LP series Sign Modules are constant current driven and use four 3-chip High Power 5050SMD LEDs with 120° viewing angle – SELECT LED COLOR TO MATCH SIGN PLASTIC COLOR
Beam Angle
120 degree
Constant Current
Yes
Current Draw Per Module
0.07A (70mA)
Dim Control
Pulse Width Modulation (PWM)
Dimensions
Dimmable
Yes
Environmental Rating
Weatherproof IP65
Input Connection Type
Pigtail
LED Lifetime
50000 Hours
LED Quantity
4 LEDs
LED Type
5050 SMD
LEDs per Segment
4
Module Length
1.52in (38.5mm)
Operating Temperature
-25~+60 °C (-13~+140 °F)
Standards And Certifications
ISA Approved, RoHS Compliant, UL Recognized
UL File Number
E357849
Volts
11~14 VDC
Wattage Per Module
0.8 Watts
Wire Length Between Modules
3.33in (84.6mm)
